High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Axis : Three to Four Axes

Decoiler : 100KG

CNC system : Automatic

Model Number : HYD-20T-3A

MOQ : 1 Set

Delivery Time : 15 Days

Cutting tool : Standard

Price : Negotiable

Power Supply : 380V 50Hz

Certification : CE / IS09001

Place of Origin : Dongguan,China

Supply Ability : 30 sets one week

Wire Diameter : 0.2-2.3mm

Brand Name : HYD

Packaging Details : Standard Seaworthy Plywood Case

Contact Now

High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Machine Overview
This high-performance CNC spring forming machine features a 0.2-2.3mm wire capacity and includes a 100KG decoiler. Available in 3 or 4-axis configurations, it utilizes advanced Taiwan CNC control systems and high-precision Japan Sanyo/Yaskawa servo motors for synchronized feeding and cam system operations.
Key Features
  • 4-axis control system (Cam axis, Feeding axis, Quill Rotary axis, and optional Spinner axis)
  • Taiwan CNC control system with Japan Sanyo/Yaskawa servo motors
  • Synchronous control of feeding and cam systems
  • Direct storage for 1000 programs
  • Maximum feeding speed of 141m/min
Applications
Ideal for manufacturing various spring types including compression springs, extension springs, single/double torsion springs, tower-shaped compression springs, flat wire springs, and custom wire forms.
Technical Specifications
Wire Size Range 0.2-2.3mm
Maximum Feeding Speed 141m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7KW
Y-axis Motor Output 2.7KW
Z-axis Motor Output 1.0KW
Machine Dimensions 1400×900×1600mm
Voltage 380V
Weight 700kg

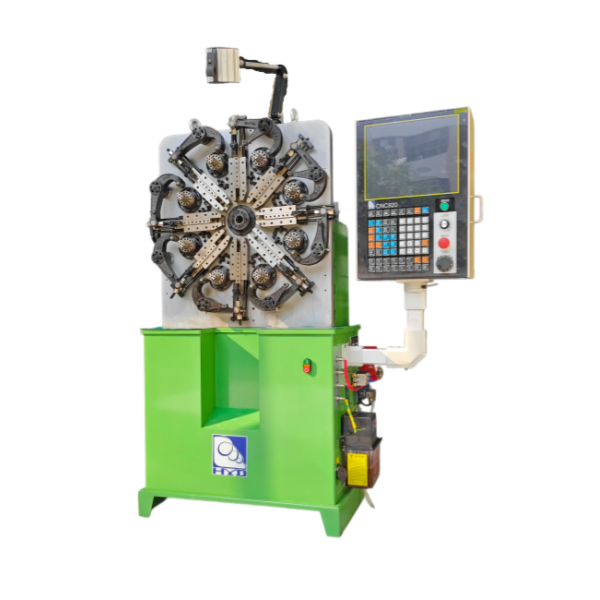

Machine Images
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Spring Samples
High Speed CNC Spring Forming Machine 0.2 - 2.3mm With 100KG Decoiler
Company Advantage
HYD is an integrated manufacturing and sales company with over 15 years of experience in the spring machine industry. Our extensive expertise makes us a reliable and experienced supplier. We specialize in manufacturing CNC spring machines, wire bending machines, spring coiling machines, and other automated CNC equipment.
